Trail Tech Motorcycle Vapor Digital Gauge Speedo ATV C Bracket 22/25mm Water

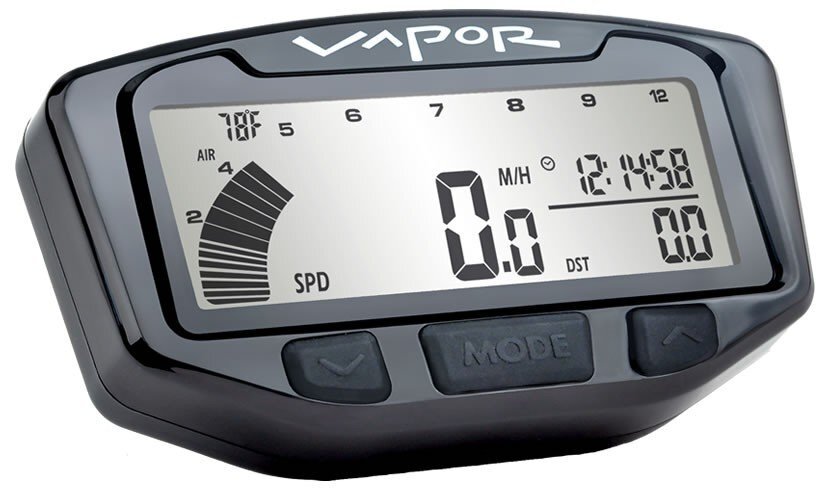

The Vapor Speedometer/Tachometer is a popular choice for both on and off-road enthusiasts. Replace your factory gauge or add the Vapor Gauge to your custom bike build.

The main features include a large RPM graph and speed readout, with much more data built in. At the top, programmable LED lights blink when its time to shift gears or during an over-temp event.

Vapor can replace an entire instrument cluster on your dashboard. Vapor displays speed, tach, engine temperature, ambient temperature, resettable distance, clock, ride time, and odometer. Maximum values are displayed for temperature, speed, and RPM (reset trip data to start fresh max values.) Use the built-in stop watch for race training, or resettable trip distance for Enduro courses.

The Vapor features LED Backlit Multi-Screen Display

Choose from one of three main screens to set as the default home screen:

Screen 1

-Speed

-Tachometer Bar Graph

-Trip Distance Clock

-Ambient Air Temperature

-Engine Temperature

Screen 2

-Speed

-Tachometer Bar Graph

-Numerical RPM

-Engine temperature

-Stop watch

-Ride time

Screen 3

-Max speed

-Max engine temperature

-Max RPM

-Accumulated ride time (total hours)

-Odometer

Kit Contents:

22mm Water Sensor: 7500-3060

25mm Water Sensor: 7500-3076

Magnet Kit: 2010-01

Wheel Sensor: 700-06

Mounting: 9000-1000

Power Lead: 9000-1011

Ignition Sensor: 9000-1021

Ignition Sensor: 7000-1004
