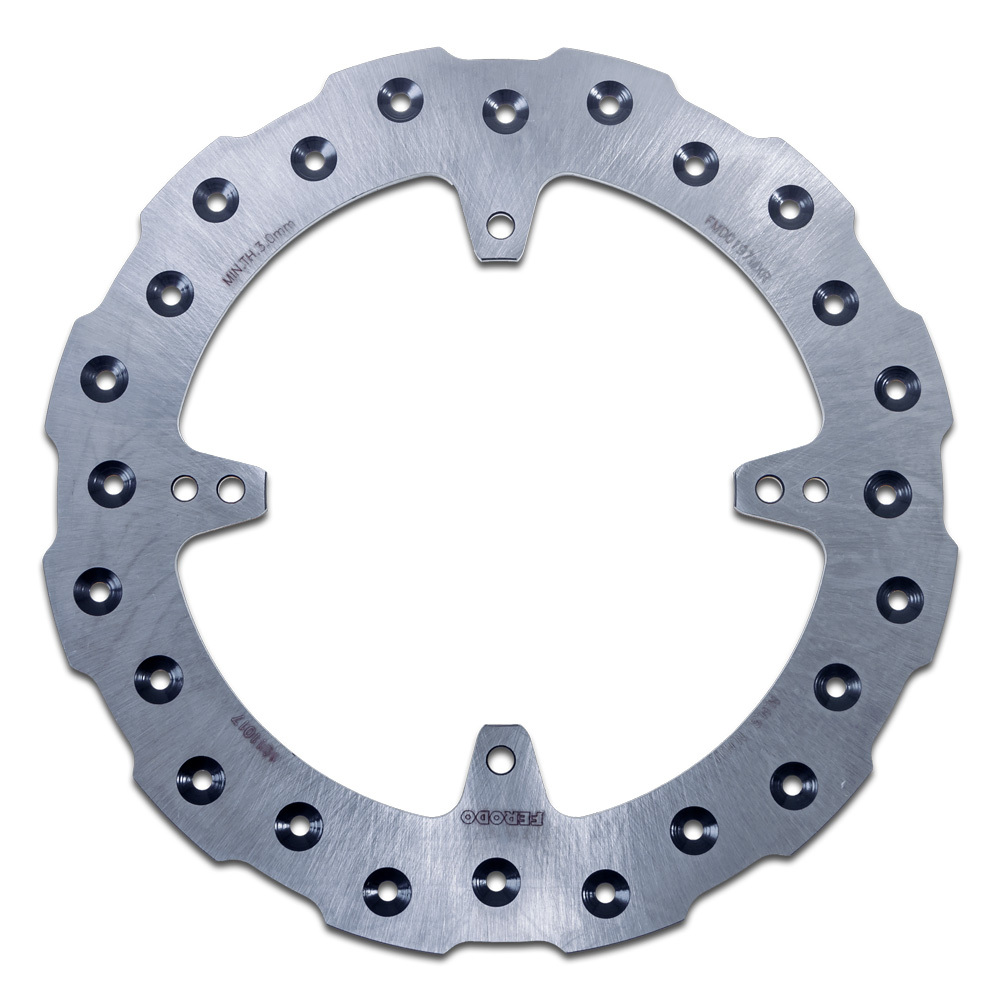

Ferodo Motorcycle Disc Brake Rotor 240mm - FMD0197MXR

• FMD0197MXR - Rear for Honda CR and CRF models.
  Check the item fitment at 'Select Your Bike' Search by entering the Make / Model / Year details and click on the 'Search' tab:

Features :

• Stepped Outer Profile - To enhance heat dissipation and help resist warping at high temperatures.
• Self Cleaning Design - Unique countersunk holes assist with the removal of dirt build-up on the brake pads and disc rotor.
• Lightweight Design - Reduces unsprung weight effect.
• Highest Quality - Machined from a high carbon grade of stainless steel and fully heat-treated for improved disc and pad wear life benefits.

Manufactured to ISO 9001 Standards to ensure a high quality product for competition and off-road applications.
Suitable for FERODO Sintered SG for wet muddy condition and Non Sintered P or EF formulations in dry and dusty conitions for excellent brakng performance.

Dimensions of FMD0197MXR:

Details	Values
OD - Outer Diameter	240.0 mm
ID - Inner Diameter	121.5 mm
PCD - Mounting Diameter	140.0 mm
Thickness	3.5 mm
Number of Mounting Holes
Mounting Hole diameter	6.5mm
Fixing Type	Straight Mount

Notes:

• New brake disc rotors and brake pads (either front or rear) should be fitted by a qualified technician.
• The Brake System comprising of master cylinder and caliper should be cleaned and serviced with new Hi Temp Racing Brake Fluid.
• It is essential to follow the correct 'bed-in' procedure to achieve the best braking performance.
• Caution - the new FERODO disc rotor should be thoroughly cleaned to remove the protective coating prior to fitment.
